The aluminum oxide grain and fiberglass construction of this cutting wheel allow it to cut metal surfaces without burrs. Product branding to your own requirements or use our own OEM branding.
Features:
Quality raw materials. Double mesh reinforcement. Metal inner ring. Doesn’t break under high-intensity work, long-cut service life.
Product Usage:
For use with square steel, steel pipes, aluminum plates, steel plates, stainless steel, copper plates, iron, etc.
Suitable for angle grinders/hand grinders.
Application Analysis Of Reinforced Super Thin Cutting Disc:
Cutting Discs are an essential tool for many industries, including metalworking, construction, and automotive repair. These discs are made of abrasive materials such as aluminum oxide, silicon carbide, or diamond, and are used to cut through various materials such as metal, concrete, and stone.
One of the key advantages of Cutting Discs is their ability to make precise cuts quickly and efficiently. They are also versatile and can be used for a wide range of applications, from cutting through thick metal sheets to shaping concrete blocks.

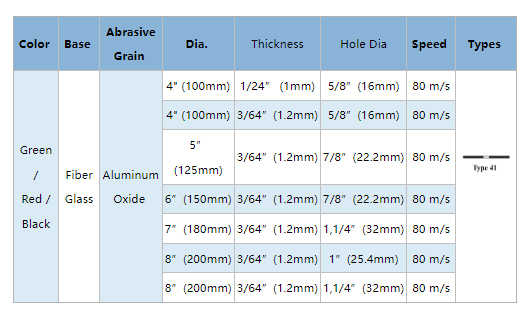

Specifications — Type 41 (Flat Cutting Disc)
| Color | Base | Abrasive Grain | Dia. | Thickness | Hole Dia. | Speed | Types |
|---|---|---|---|---|---|---|---|
| Green / Red / Black | Fiber Glass | Aluminum Oxide | 4″ (100 mm) | 1/24″ (1 mm) | 5/8″ (16 mm) | 80 m/s | Type 41 |
| 4″ (100 mm) | 3/64″ (1.2 mm) | 5/8″ (16 mm) | |||||
| 5″ (125 mm) | 3/64″ (1.2 mm) | 7/8″ (22.2 mm) | |||||
| 6″ (150 mm) | 3/64″ (1.2 mm) | 7/8″ (22.2 mm) | |||||
| 7″ (180 mm) | 3/64″ (1.2 mm) | 1-1/4″ (32 mm) | |||||
| 8″ (200 mm) | 3/64″ (1.2 mm) | 1″ (25.4 mm) | |||||
| 8″ (200 mm) | 3/64″ (1.2 mm) | 1-1/4″ (32 mm) |
However, it is important to use the right cutting disc for the job at hand. Using the wrong disc can result in damage to the disc or the material being cut, as well as potential safety hazards. For example, using a disc designed for cutting metal on concrete can cause the disc to wear out quickly and potentially shatter, posing a risk to the operator.
Another important factor to consider when using Cutting Discs is the speed at which they are used. Discs that are operated at too high a speed can overheat and wear out quickly, while discs that are operated at too low a speed may not be effective at cutting through the material.
Specifications — Super Thin Type 42 (1.2 / 1.6 mm)
| Product No. | Size (mm) | Size (inch) | Type | Specification | Fiberglass |
|---|---|---|---|---|---|
| K21071242 | 115 x 1.2 x 22.23 | 4 1/2 x 3/64 x 7/8 | T42 | A46T-BF | 2 |
| K21071642 | 115 x 1.6 x 22.23 | 4 1/2 x 1/16 x 7/8 | T42 | A46T-BF | 2 |
| K21081242 | 125 x 1.2 x 22.23 | 5 x 3/64 x 7/8 | T42 | A46T-BF | 2 |
| K21081642 | 125 x 1.6 x 22.23 | 5 x 1/16 x 7/8 | T42 | A46T-BF | 2 |
The 1.2 mm disc leaves a narrow kerf and cuts with less resistance, which suits thin-walled tube,
sheet metal and stainless where heat discolouration matters. The 1.6 mm version trades a little kerf
width for more resistance to side load. Both are double fiberglass reinforced with a metal inner ring.
Other thicknesses and profiles
For 2.5 mm and 3.0 mm discs, and for Type 41 flat cutting discs from 100 mm to 405 mm,
see Reinforced Cutting Disc.
